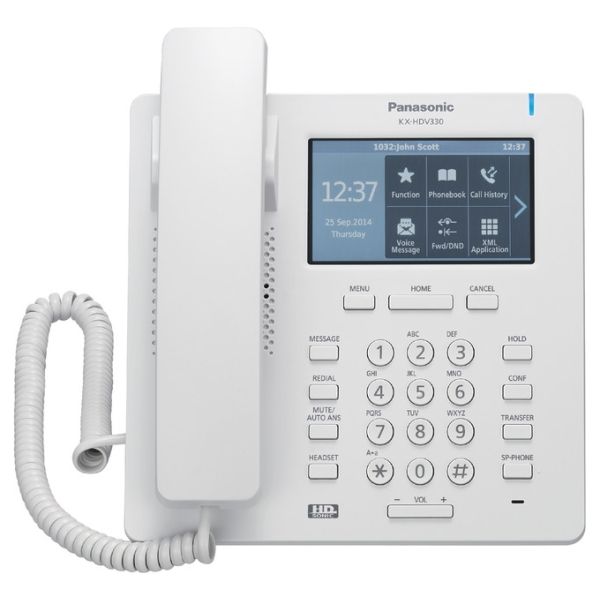

Panasonic KX-HDV330 SIP Deskphone - White

This Product is End of Life

Please Click Here for our Available Panasonic IP | VoIP | SIP Phones

The new Panasonic KX-HDV330 delivers exceptional yet affordable quality, with the added value features of a touch screen colour LCD panel, built-in Bluetooth®, 24 flexible function keys and the ability to connect up to 12 SIP lines. Low maintenance needs, easy installation and long-term reliability, mean that the KX-HDV330 is both a cutting-edge and cost-effective solution, whatever your business size may be.

Key Features

• 4.3" colour TFT LCD touch panel
• Built-in Bluetooth®
• 12-line SIP phone
• 24 flexible function keys with optional expansion of up to 224 keys
• Full duplex Speakerphone with HD SONIC
• Support for UC features including BroadSoft

Features

• 4.3-inch colour TFT LCD display with touch panel
• Touch panel
• LCD Backlight
• Number of SIP Lines 12
• Self–labeling 3 pages
• Message Waiting, Ringer & Missed call indicator 1 colour (Blue LED)
• Soft Key No (touch panel on LCD)
• Flexible function & Line Indicator No (touch panel on LCD)
• 0~9,*,# Key
• Volume Key (- / +)

Interfaces

• Network Interfaces 2 x RJ45 10 / 100 base-T (Auto / 100MB-FULL/ 100MB-HALF /10MB-FULL / 10MB-HALF) Auto MDI / MDIX
• Handset Full Duplex/Wideband
• Wired Headset port Yes (RJ9 jack) Wired headset and EHS voice signal
• EHS (control port) 3.5 mm jack
• EHS (voice port) Headset
• Built–in Bluetooth Yes class2 BTv2.1+EDR (HSP)TBD
• Expansion module(DSS) KX-HDV20 (Optional)
• Expansion module (DSS) maximum install 5
• Expansion Module (DSS) Interface Special RJ11 (USB signal)
• SP–Phone Yes (Full duplex)
• USB interface -
• Ringer Tone 32
• ECO mode Yes (LAN speed: 10 Mbps, Cannot use 2nd port)
• Power Supply PoE (IEEE 802.3af), AC Adaptor (Optional)
• PoE (Power of Expansion Module) -
• PoE class 3

Installation

• Desk stand (Angle) 2 position (45/60 degrees)
• Wall mount Yes
• Dimension (W x D x H mm) High position: 195 x 184 x 188; Low position: 195 x 190 x 209

Electric Volume and LCD Specification

• Speaker phone 8 levels
• Handset 8 levels
• Ringer 8 levels + Off
• LCD Contrast -
• LCD Backlight Active: 8 levels, Inactive: Low/Off
• LCD backlight mode 10 s/ 1 / 5 / 10 / 30 / 60 / 120 / 180 / 300 min Always On

Broadsoft Compatible

• Basic Call Feature
• Missed Calls Display
• N–Way Conference
• Busy Lamp field
• Call Centre
• Call Park Notification
• Click to Call
• Feature Key Synchronisation
• Shared Call Appearance
• BroadSoft Xsi
• BroadSoft Presence
• BroadSoft Xsi Phonebook
