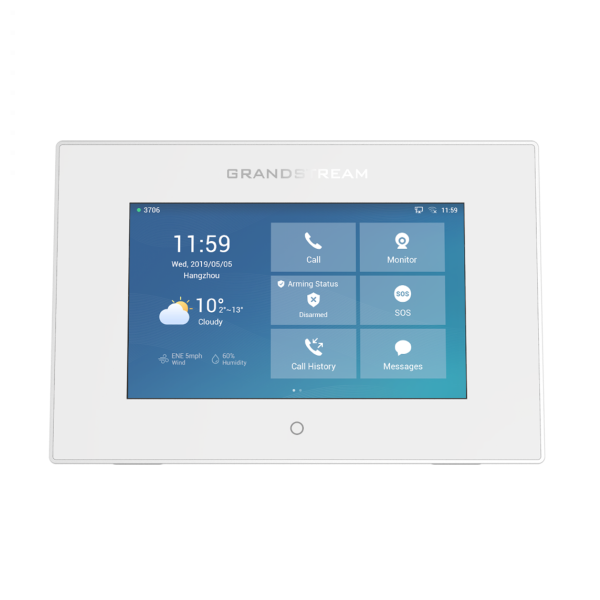

Grandstream GSC3570 HD Intercom and Facility Control Station

Door Access | Physical Security | 7 Inch Touch Screen LCD | Full Duplex 2 Way Audio | Wi-Fi | Alerts | HD Audio | PoE

The Grandstream GSC3570 is a powerful intercom and facility control station designed to provide businesses with a dedicated device to manage facility communications, door access, physical security and more. The device can be wall mounted or placed on a desktop as a solution for easy door control, intercom and paging communication, security camera management and a facility wide UC integration.

The GSC3570 features a 7 Inch Touch Screen LCD and Full Duplex 2 Way HD Audio, it offers a flexible network connectivity through 100Mbps network port with PoE or integrated dual band Wi-Fi support. This SIP Intercom and Facility Control Station is designed to seamlessly integrate Grandstream's entire range of products, including the GDS Series of Door Access Devices, GSC Series of Intercom and Paging Devices, Security Cameras and more. The GSC3570 is ideal for any scenario where facility access, communications and security need to be centrally monitored and controlled.

Features

• 7 Inch 1024 x 600 Capacitive Touch Screen
• Dual Band 802.11 ac Wi-Fi
• 4 x Alarm Input Ports and 1 x Alarm Output Port for Customised Deployments
• Full Duplex 2 Way HD Audio with Advanced Echo Cancellation
• Secure Boot & Data TLS and SRTP Security Encryption Technology to protect Calls and Accounts
• Supports PoE to Provide a Network Connection to the Device

Protocol/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LDAP, 802.1x, TLS, SRTP, IPv6

Network Interface

• Dual Switched 10/100Mbps Ports

Graphic Display

• 7’’ 1024×600 Capacitive Touch Screen TFT LCD with Home Key

Wi-Fi

• Dual Band 802.11 a/b/g/n/ac (2.4GHz & 5GHz)

Alarm Input

• 4 Channels, Including 1 Optocoupler, Vin < 15V (IN+) and 3 Dry Contact (IN1-3), for Low Voltage Devices Such as a Door Sensor, other Switch Contact, Button etc

Alarm Output

• 1 Channel/Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for High Voltage Devices Such as, an Electric Lock or Light Switch

LED Indicator

• Yes Dual Colour LED for Event Indication

Micro SD/TF Supported

• Up to 256G

Voice Codecs and Capabilities

• G.711μ/a, G.722 (Wide-Band), G.726-32, iLBC, Opus, G.729A/B, DTMF (In Audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS

Voice Decorders and Capabilities

• H.264 BP/MP/HP, Video Resolution up to 720p, Frame Rate up to 30 fps, bit Rate up to 2Mbps

Telephony Features

• 4 SIP Accounts, Hold, Call Waiting, Call Log, Auto Answer, etc

Sample Applications

• Local Apps - Contacts, Call History, Settings, Voicemail, Clock API/SDK Available to Allow Integration with 3rd Party Door System Products

Operating System

• Linux

HD Audio

• Yes, Dual Speakers with Support for Wideband Audio and Media Play in Stereo, Acoustic Echo Cancellation

QoS

• Layer 2 (802.1Q, 802.1p), 802.11e and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• Secure Boot & Data, Double Images for High Reliability, Random Administrator Password, User and Administrator Level Passwords, MD5 and MD5-sess Based Authentication, 256-bit AES Based Secure Configuration file, SRTP, TLS, 802.1x Media Access Control

Multi-Language

• English, Chinese, German, Spanish, French, Italy, Portuguese, and Russian

Upgrade/Provisioning

• Firmware Upgrade via TFTP/HTTP/HTTPS, Mass Provisioning using AES Encrypted XML Configuration File, Manual Upload

Power & Green Energy Efficiency

• 2-pin DC Input: 12VDC/1A Integrated PoE : IEEE 802.3af Class 3, Power Consumption <10W Micro USB Input: 5VDC/2A

Weights and Dimensions

• Unit Dimensions - 224.5mm x 149.5mm x 36.5mm
• Unit Weight - 517g
• Package Weight - 880g

Package Contents

• Grandstream GSC3570
• Quick Installation Guide
• Wall Mount Bracket
