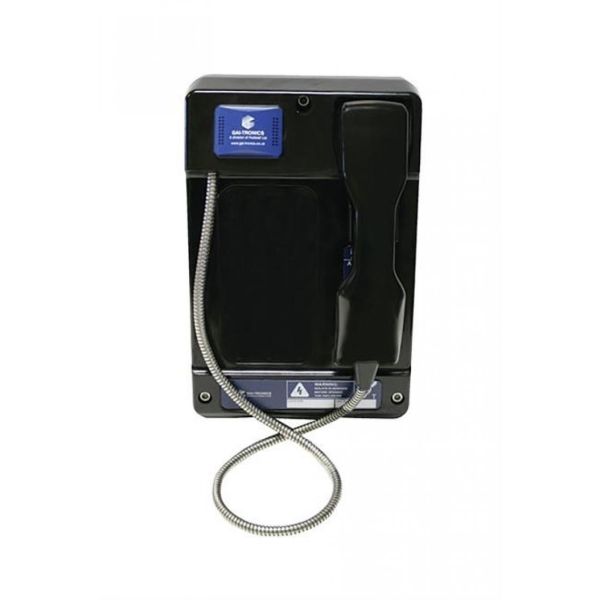

Gai-Tronics Auteldac 5 Zero Button SC N/Canc

The Auteldac 5 (A5) telephone is an ATEX and IECEx approved, weather resistant unit, designed to withstand arduous industrial atmospheres and environmental extremes.

Certified for safe operation in hazardous areas, the Auteldac 5 carbon loaded glass filled polyester enclosure eliminates risk of rust and corrosion.

Features such as ‘electronic on-hook sensing’ and ‘electronic tone ringer’ ensures an enclosure protection of up to IP66. Should the handset be left off-hook, the A5 will automatically revert to on-hook state after a period of 7 minutes (optional).

Auteldac 5 telephones come complete with an integral ringer with volume control and secondary beacon / external sounder actuator as standard. An inductive coupler is fitted to aid the hard of hearing. For hands-free telephone use, the Auteldac 5 headset* version can be provided.

The Zero Button Telephone can be used to initiate a PABX ‘hotline’ or lift handset and wait for reply, where the PABX does the call routing/dialling.

Features

• IECEx Certified
• Full Keypad with 3 Programmable Memory Buttons, or CB (0 button) Variant
• Fully compliant with TBR21 / TBR38
• ATEX Product Directive 2014/34/EU
• Robust and Weather Resistant up to IP66
• Beacon / External Sounder Actuator
• 90dB Sounder (Adjustable)
• INMETRO Approved for Gas and Dust
• Zone 1 & 2, Zone 21 & 22 Compliant Models
• Auteldac 5 Stainless Steel Cord

Specifications

• Enclosure - Carbon Loaded Glass-Filled Polyester (Colour - Black)
• Surface Resistance: <109 Ω
• Handset - Conductively Coated Polycarbonate Handset with Coiled Cord or Stainless Steel Spiral Cord. Noise Cancelling Options. Extended Cord Lengths Available
• Keypad - Weather Sealed Tactile Digital Keypad
• Hook Switch - Electronic with No Mechanical Moving Parts
• Weather Ingress Protection - Up to IP66
• Ringing: Shrill Warble Tone >90 dBA @ 1 Metre Typical. Internal Volume Control
• Power Supply - Drawn from Telephone Line
• Integral Ring Detector: Contact Closure Following the Ringing Cadence, Rated at 230Vac, 3A r.m.s
• Isolated Hook Switch Sensor - Additional Contact Rated at 230Vac, 150mA r.m.s
• Parallel Terminal Block - Duplicated Line Terminals Allows Connection to a Parallel Device without an Additional Junction Box
• Time Out -: Enforces a Fixed Call Maximum Time Limit to 7 Minutes from Lifting of the Handset. User Selectable ON or OFF
• Dialling system - LD or DTMF (Switchable)
• Recall Button - Internally Switchable from Earth Loop Recall (600ms pulse) and Timed Break Recall 100ms, 250ms or 600ms
• Certified Operating Temperature: -20° C up to +60° C
• Relative Humidity: Up to 95% (Non-Condensing)
• Weight - Approx - 3.2kg
