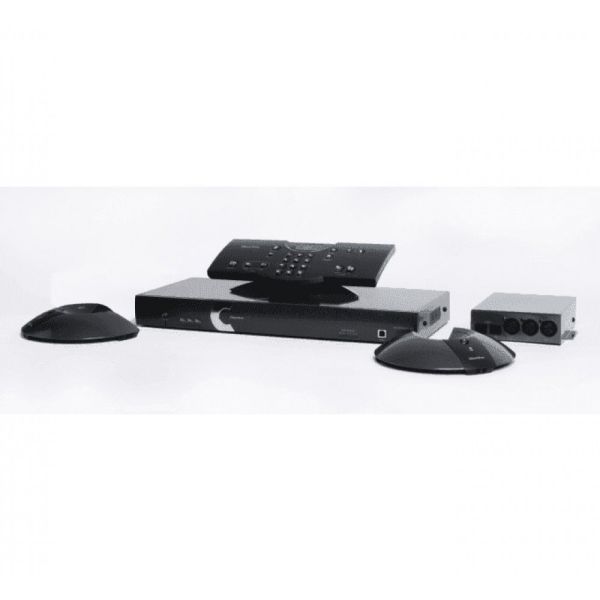

Clearone Interact AT Complete Room Audio Conferencing Solution

A complete conference room solution with flexibility in mind. The INTERACT AT includes all the necessary audio equipment and peripherals for any conference room while delivering exceptional audio quality at an affordable price.

Customize your solution with multiple microphones and speaker options, direct connection to enterprise telephones, USB audio, a room controller, plus the ability to connect to the rich-media systems.

Features

• Enables Unified Communication in the conference room
• USB port connects to PC for Skype, WebEx and other A/V conferencing applications
• Headset port connects to Cisco, Avaya, and Nortel handsets
• Sound quality exceeds traditional conference phone with ClearOne’s HD Conference technology:
• -Simplified installation combines all microphone signals onto a single data cable minimizing conduit and raceway requirements.
• -Noise cancellation reduces background noises from fans or HVAC systems
• -Automatic level controls keep participants’ audio balanced and consistent
• Scalable and flexible:
• -Wireless or wired controller option
• -Multiple speaker mount options: wall, ceiling or custom
• -Select appropriate number of MIC EX and MIC PODS (max three) to fit the applications
• Integral network management system enables remote configuration, control and monitoring
• Interoperates with NetStreams™ A/V over IP systems
• Easy to install, program and use

Included In This Package:

• Interact AT
• 2-Interact Mic
• Interact Dialer (wired)
• Bose wall mount speakers

Specifications

Audio Performance

• Conditions: Unless otherwise specified, all measurements are performed from 20 Hz to 15 kHz BW limit (No Weighting)
• Dynamic Range: > 80 dB (Non-A Weighted) THD+N: < 0.02%

Audio Mixer

• AEC Tail Time: 128 ms
• Adaptive Noise Cancellation: 6-15 dB
• Gating: Adaptive Ambient, 1st Mic Priority, Lookahead Gating
• Up to a total of 3 INTERACT MIC or INTERACT MIC EX devices can be connected to the INTERACT AT Mixer
• 48 kHz Sample Rate, 24-bit Resolution

Audio Mixer Line Input

• Connection: Unbalanced RCA
• Impedance: 10 k?
• Nominal Level: -10 dBu
• Maximum Level: +9 dBu

Audio Mixer Playback

• Connection: Unbalanced Left and Right RCA (Summed Internally)
• Impedance: 10 k?
• Nominal Level: -10 dBu
• Maximum Level: +15 dBu

Audio Mixer Line Output

• Connection: Unbalanced RCA
• Impedance: 10 k?
• Nominal Level: -10 dBu
• Maximum Level: +9 dBu

Audio Mixer Record Output

• Connection: Unbalanced Left and Right RCA (Mono Source Split Internally)
• Impedance: 10 k?
• Nominal Level: -10 dBu
• Maximum Level: +9 dBu

Audio Mixer Amplifier Out

• Connection: Left and Right Push Terminals
• Power: 5 Watts
• Frequency Response: 20 Hz – 15 kHz (+/-1 dB)
• Dynamic Range:
• > 80 dB THD+N: < 0.50%
• (+5 dBu Line Input @ 1 kHz)

Telephone Interface

Telephone Audio Performance

• Conditions: Unless otherwise specified, all measurements are performed with Transmit Limiter and Receive ALC disabled

Frequency Response

• 250 Hz to 3.3 kHz ±1 dB THD+N: < 0.30% re-max level 250 Hz to 3.3 kHz
• SNR: > 62 dB re-max level

Telco Line Echo Cancellation

• Tail Time: 32 ms
• Null: 55 dB Nominal

Telephone Noise Cancellation

• Noise Cancellation 6-15 dB Attenuation

RS-232 Control Port

• DB9 Female
• Baud Rates:
• - 9,600 / 19,200 / 38,400 /
• - 57,600 (Default) / 115,200
• Protocol: 8 Bit / 1 Stop / No Parity
• Hardware Flow Control ON (Default)/OFF

USB Configuration Port

• USB 2.0 Compatible
• Type: B Connector

Visca Camera Port

• Din, 9600 Baud, No Flow Control

LAN

• 10/100 Ethernet
• RJ-45 with Activity LED
• Supports: Telnet, HTTP

Link Bus

• Connection: RJ-45 with CAT5 Daisy-chained
• Maximum Distance: 60 feet from Mixer to last device in chain
• Maximum Number of INTERACT MIC Devices:
• 3 - Any Mix of INTERACT MIC or MIC EX
• Maximum Number of INTERACT COM Devices: 1 per INTERACT Mixer

Configuration Software

• INTERACT Supports:
• Microsoft XP, Vista and Windows 7

Interact Com

Verison

• Wired or Wireless (2.4 GHz)

USB Audio Channel

• USB 2.0 Compatible
• Connector: Mini Type B
• TX and RX Channel, 16-bit at 16 kHz

Headset Connection

• RJ11 Port

Supported Telephone Sets

• Most Cisco, Avaya, and Nortel Phones

Audio Performance

• Frequency Response: 40 to 3300 Hz
• THD and Noise: < 0.04% re-max level with 0 dB Gain @ 1 kHz
• Dynamic Range: > 84 dB (Non A-Weighted)

Audio Processing

• Receive Automatic Level Control
• Line Echo Cancellation for Side-Tone
• Elimination

GPIO

• Pin 1: Global Mute (C)
• Pin 2: Global Mute (S)
• Pin 3: ON/OFF Hook (C)
• Pin 4: ON/OFF Hook (S)
• Pin 5: 5V DC up to 40 mA

Interact Dialer (Wired)

• Functions: Functions: Dialing, Volume Control, Mute Control

Interact Mic (Table Top Microphone)

• Coverage: 360
• Frequency Response: 60 Hz - 14 kHz THD+N: < 0.08% (-45 dBu Input @ 1 kHz)
• Sensitivity: -45 dBu

Interact Mic EX - Microphone Distribution Box

• Connection: Female XLR Balanced
• Maximum Level :+18 dBu
• Frequency Response: 20 Hz – 15 kHz THD + N: < 0.01%
• Phantom Power: 24 V @ 10 mA
• Impedance: 5 k? per Leg or 10 k? Balanced

Power Supply

• Primary Voltage: 100 to 240 VAC
• Auto-Sensing, 50-60 Hz
• Power Consumption: 32 W Maximum

Dimensions (W x D x H)

• Interact AT Mixer: 17” x 7.5” x 2” (43.2 cm x 19.1 cm x 5.1 cm)
• Interact Dialer: 10.5” x 4.5” x 2.75” (26.7 cm x 11.4 cm x 6.9 cm)
• Interact MIC EX: 4.7” x 5.6” x 1.7” (11.9 cm x 14.3 cm x 4.4 cm)
• Interact COM: 4.7” x 5.6” x 1.7” (11.9 cm x 14.3 cm x 4.4 cm)
• Interact MIC: Diameter: 7” (17.8 cm) Height: 1.5” (3.8 cm)

Weight

• Interact AT Mixer: 4.5 lbs. (2.25 kg)
• Interact Dialer: 2.0 lbs. (1.0 kg)
• Interact MIC: 1.5 lbs. (0.75 kg)
• Interact MIC EX: 1.5 lbs. (0.75 kg)
• Interact COM: 1.5 lbs. (0.75 kg)

Compliance

• ROHS Compliant
• WEEE Compliant
• UL Safety Listed
• AES48-2005 AES Standard on Grounding and EMC Practice

Part Numbers

• Interact AT: 910-154-010
• Interact COM: 910-154-030
• Interact MIC: 910-154-015
• Interact Dialer: 910-154-035
• Interact MIC EX: 910-154-020
• Interact COM-W (For Wireless Dialer): 910-154-025 (Not Included)
• Interact Dialer W (Wireless): 910-154-040 (Not Included)
• ClearOne Wall Speaker: 910-151-002-01 (Not Included)
• ClearOne Ceiling Speaker: 910-151-001-01 (Not Included)
