Cisco SX20 Quick Set HD, NPP, 4x PHDCam, 1 Mic & Remote Control - (1080P) - Refurbished

£3,594.00 £2,995.00
Cisco
  • Transforms a flat panel display into a 1080p high-definition meeting space
  • Sleek, compact design
  • Intuitive connections make setup as easy as connecting a DVD player
  • Provides up to 1080p60 resolution - compatible with standards-based video without loss of features
Stock status
In Stock
Goods Condition
Refurbished
PMC Product code
14102


The Cisco TelePresence® SX20 Quick Set (SX20 Quick Set) can transform any flat panel display into a sleek and powerful telepresence system. The SX20 Quick Set is designed to deliver high definition video and multiparty conferencing with the flexibility to accommodate various room size and configurations - all at a value price. The SX20 Quick Set supports embedded capability for multipoint support with Cisco® TelePresence MultiSite technology, enabling users to add three additional participants to a telepresence call.

The SX20 Quick Set combines a powerful codec, Premium resolution of 1080P, three camera choices, and a dual display in an easy-to-deploy and easy-to-use solution. Whether you're a small business just getting started with telepresence or a large enterprise looking to expand your existing deployment, the SX20 Quick Set delivers the performance you would expect from more expensive systems - in a compact and feature-rich package. Cisco TelePresence SX20 Quick Set is designed to truly extend the power of in-person to everyone, everywhere.

Design Features

  • Transforms a flat panel display into a 1080p high-definition meeting space
  • Intuitive connections make setup as easy as connecting a DVD player
  • Provides up to 1080p60 resolution - compatible with standards-based video without loss of features
  • Sleek, compact design

Application Features

  • Multimedia and presentations can be shared at the touch of a button
  • Supports Cisco Intelligent Proximity for content sharing to mobile devices and wireless sharing from Macs and PCs[2]
  • Supports Switched Conferencing (SVC) for enhanced layouts[2]
  • Easily control room peripherals such as lights, room dividers, curtains, directly from the Cisco TelePresence Touch 10 (optional) through customizable API (requires external third-party control system processor)
  • Basic API[3] available over IP (Telnet or Secure Shell Protocol [SSH]) or over RS-232 with USB adapter
  • Dual-display
  • High-definition content sharing up to 1080p30 resolution
  • One button to push (OBTP) to start a meeting

 Performance Features

  • H.323/SIP calls up to 6 Mbps
  • Built-in individually transcoded multipoint conferencing (optional) offers ability to add three additional participants
  • Premium resolution (1080p60)
  • Cisco Unified Communications Manager native support (requires Cisco Unified Communications Manager Version 8.6 or higher)
  • Takes advantage of the Cisco TelePresence Total Solution approach, including Cisco TelePresence ad-hoc conferencing features, recording and streaming, and firewall traversal services
  • Easy provisioning and self-configuration with Cisco Unified Communications Manager (CUCM), Cisco TelePresence Video Communications Server (VCS), or Cisco WebEx TelePresence

 Software Compatibility

  • Cisco TelePresence Software Version TC 5.1 or later
  • Cisco Collaboration Endpoint Software Version 8.0 or later (requires Touch 10 or TRC6 remote control)

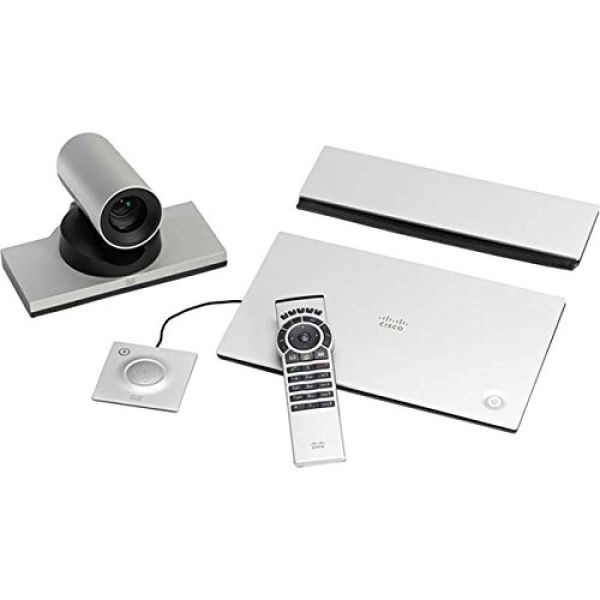

In the Box

  • SX20 Codec
  • Cisco TelePresence Precision Camera (choice of Precision 40 or 12X) Cisco TelePresence Table Microphone 20
  • TRC6 remote control
  • Cables and power supply

Bandwidth

  • H.323 and SIP up to 6 Mbps
Video Standards
  • H.263, H.263+, H.264

Video Features

  • Local auto-layout
  • Native 16:9 widescreen
  • Advanced screen layouts
SX20 Codec Dimensions
  • Width: 11.8 inches (30.0 cm)
  • Height: 1.4 inches (3.4 cm)
  • Depth: 7.1 inches (18.0 cm)
  • Weight: 3.1 pounds (1.4 kg)

Network Interfaces

  • One LAN and Ethernet (RJ45) 10/100/1000 Mbit

Security Features

  • Management using HTTPS and SSH
  • IP administration password
  • Menu administration password
  • Disable IP services
  • Network settings protection

Audio Features

  • High quality 20 KHz stereo
  • Two acoustic echo cancellers
  • Automatic Gain Control (AGC)
  • Integration with third-party audio systems
  • Automatic noise reduction
  • Active lip synchronization

Audio Inputs (Four Inputs)

  • Two Microphones, 4-pin minijack
  • One minijack for line-in stereo
  • One Audio in from Camera (HDMI)

Audio Outputs (Two Outputs)

  • One minijack for line out stereo
  • One HDMI, (digital main audio)
[1] Requires Collaboration Endpoint Software Version 8.2 or later (CE8)
[2] Requires Collaboration Endpoint Software Version 8.0 or later (CE8)
[3] Requires Collaboration Endpoint Software Version 8.1 or later (CE8)
[4] Requires TC Software Version TC5.1 or later. Not supported in CE8
More Information
ColourSilver
Manufacturer's Code:CTS-SX20-PHD4X-K9
EAN5060489268556
Warranty12 months
ManufacturerCisco
Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
